Ameri-Line provides these diagrams that will help you determine the type and quantity of platformtype trailers required to transport your freight. The total freight weight and dimensions of each trailer type can typically transport “legally”, ie. without state highway permits, is shown. Since there are variations within each trailer type, the information shown should be used as a general guideline. Most of these platform trailers have the capacity to handle freight exceeding these weights and dimensions for a premium charge and require state(s) permit authority to be obtained prior to shipment. Please contact us for assistance with trailer selection.
**Please note: The maximum freight dimensions and weight shown below each trailer are approximate and should be used as a rough guideline for planning, not for making precision loading calculations. Actual loadable freight weight & dimensions vary from trailer to trailer and are based on the specifications of the actual trailer & semi-tractor utilized. Additional equipment is available for larger and heavier shipments.

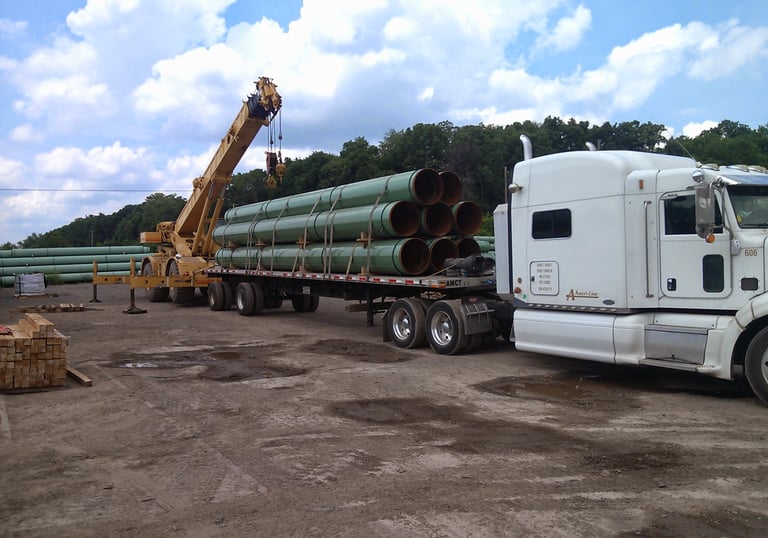

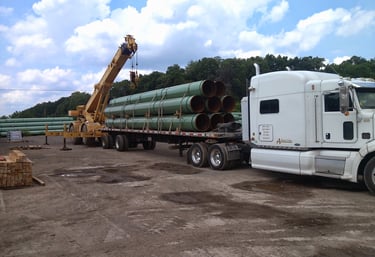

Flatbed
This trailer accommodates freight with the maximum legal weight and dimensions shown below.
Max. Legal Freight Weight
48.000 lbs.
Maximum Freight Dimensions
Length 48 or 53 feet
Width 8.5 feet (102″)
Height 8.5 feet (102″)

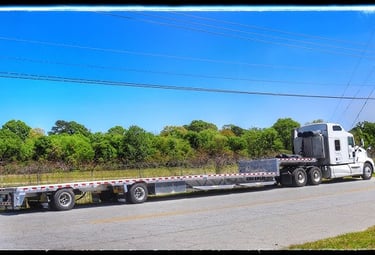

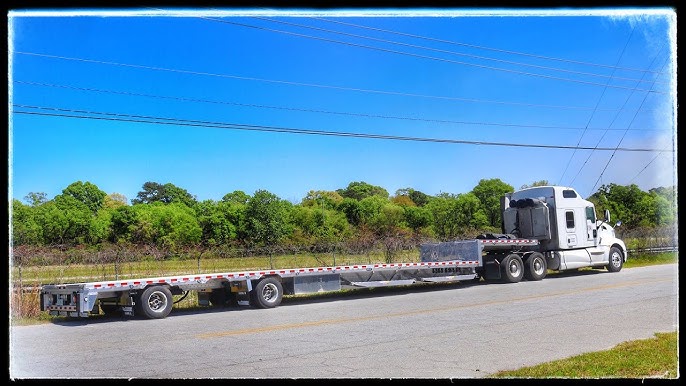

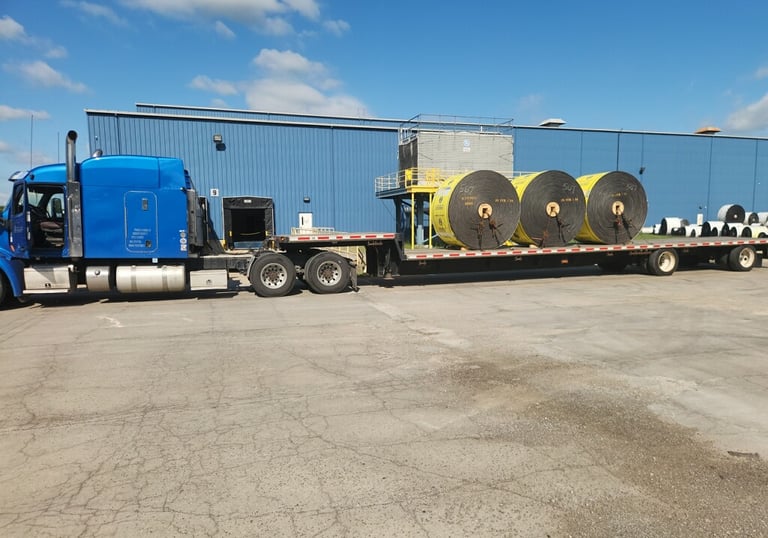

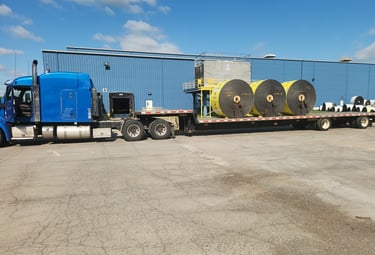

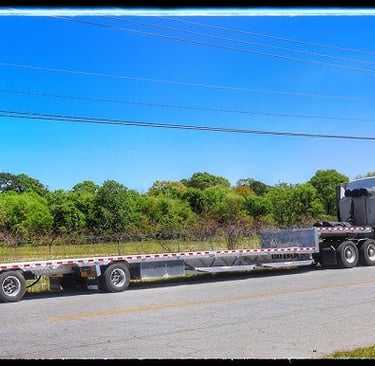

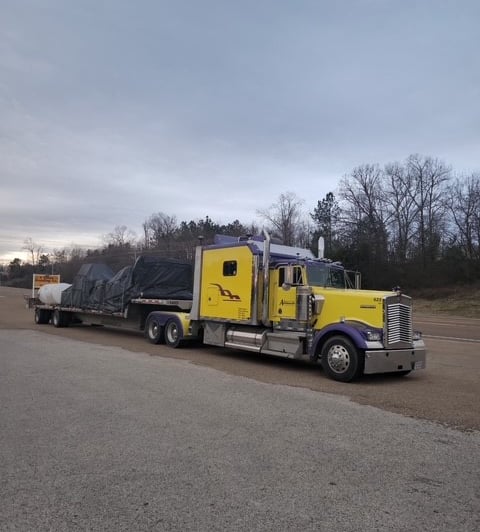

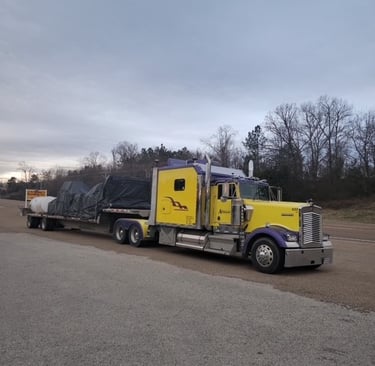

Single-Drop Deck (aka Stepdeck)
This trailer accommodates freight with the maximum legal weight and dimensions shown below.
Max. Legal Freight Weight
48,000 lbs.
Maximum Freight Dimensions
| Main Deck | Max. Dims. | Front Deck | Max. Dims. |
|---|---|---|---|
| Length | 37 or 42 feet | Length | 11 feet |
| Width | 8.5 feet (102″) | Width | 8.5 feet (102″) |
| Height | 10 feet (120″) | Height | 8.5 feet (102″) |

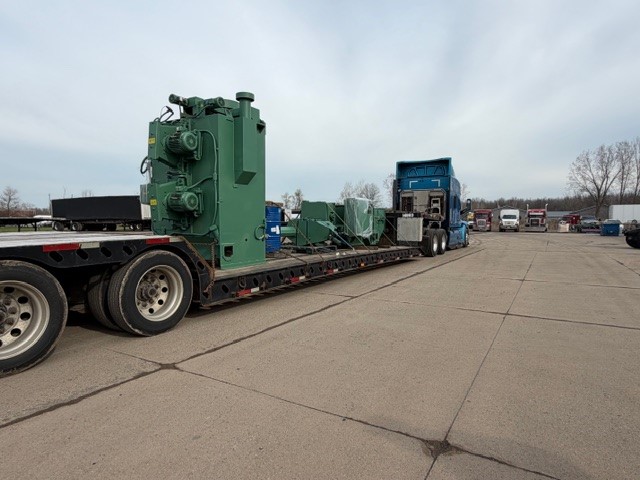

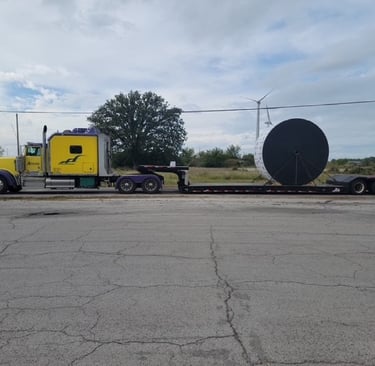

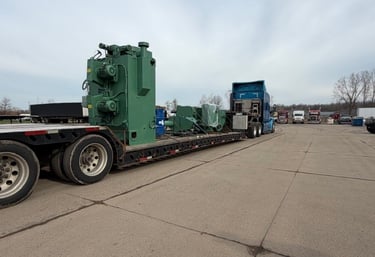

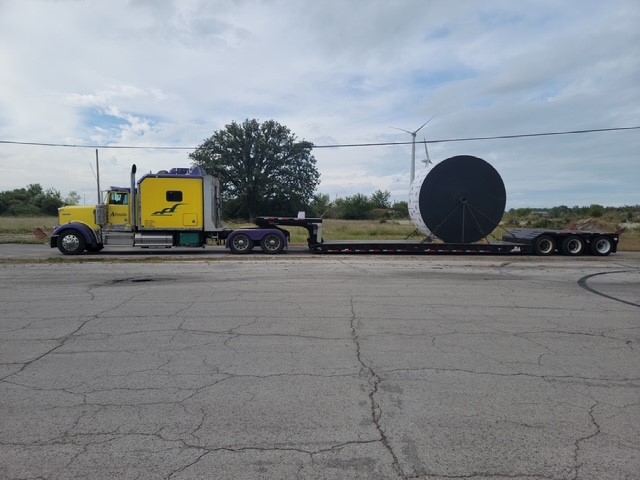

Double-Drop Deck
This trailer accommodates freight with the maximum legal weight and dimensions shown below.
Max. Legal Freight Weight
40,000 lbs.
Maximum Legal Freight Dimensions
| Main Deck | Max. Dims. | Front Deck | Max. Dims. | Rear Deck | Max. Dims. |
|---|---|---|---|---|---|
| Length | 29 feet | Length | 10 feet | Length | 9 feet |
| Width | 8.5 feet (102″) | Width | 8.5 feet (102″) | Width | 8.5 feet (102″) |
| Height | 11.5 feet (138″) | Height | 8.5 feet (102″) | Height | 10 feet (120″) |
Double-Drop w/Detachable Deck (aka Lowboy, RGN)
This trailer accommodates freight with the maximum legal weight and dimensions shown below.
Max. Legal Freight Weight
40,000 lbs.
| Main Deck | Max. Dims. | Front Deck | Max. Dims. | Rear Deck | Max. Dims. |
|---|---|---|---|---|---|
| Length | 29 feet | Length | 10 feet | Length | 9 feet |
| Width | 8.5 feet (102″) | Width | 8.5 feet (102″) | Width | 8.5 feet (102″) |
| Height | 11.5 feet (138″) | Height | 8.5 feet (102″) | Height | 10 feet (120″) |
Enclosed Air Ride Box Trailer (aka Air Ride Dry Van)
This trailer accommodates freight with the maximum legal weight and dimensions shown below. Our Vans are equipped with E-Tracking and straps for cargo securement. (Load Bars available upon request)
Max. Freight Weight
45,000 lbs.
Maximum Freight Dimensions
Length 52.5 feet
Width 8 feet 5 inches (100″)
Height 9 feet 2inches (110″)
Stretch Flatbed
This trailer accommodates freight with the maximum legal weight and dimensions shown below.
Max. Legal Freight Weight
39,000 lbs.
Maximum Legal Freight Dimensions
Length 53* to 90 feet *any freight longer than 53’ requires State Permit(s)
Width 8.5 feet (102″)
Height 8.5 feet (102″)
Stretch Single-Drop Deck
This trailer accommodates freight with the maximum legal weight and dimensions shown below.
Max. Legal Freight Weight
40,000 lbs.
Maximum Freight Dimensions
| Main Deck | Max. Dims. | Front Deck | Max. Dims. |
|---|---|---|---|
| Length | 38-63 feet | Length | 10 feet |
| Width | 8 feet (96″) | Width | 8 feet (96″) |
| Height | 10 feet (120″) | Height | 8.5 feet (102″) |
Stretch Double-Drop Deck – 2, 3 or 4 axle (depending on weight)
This trailer accommodates freight with the maximum legal weight and dimensions shown below.
Max. Legal Freight Weight
40,000 lbs.
Maximum Freight Dimensions
| Main Deck | Max. Dims. | Front Deck | Max. Dims. | Rear Deck | Max. Dims. |
|---|---|---|---|---|---|
| Length | 29-50 feet | Length | 10 feet | Length | 9 feet |
| Width | 8.5 feet (102″) | Width | 8.5 feet (102″) | Width | 8.5 feet (102″) |
| Height | 11.5 feet (138″) | Height | 8.5 feet (102″) | Height | 10 feet (120″) |

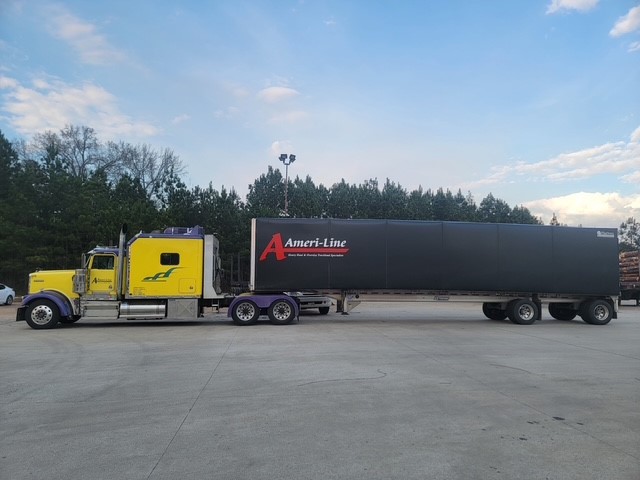

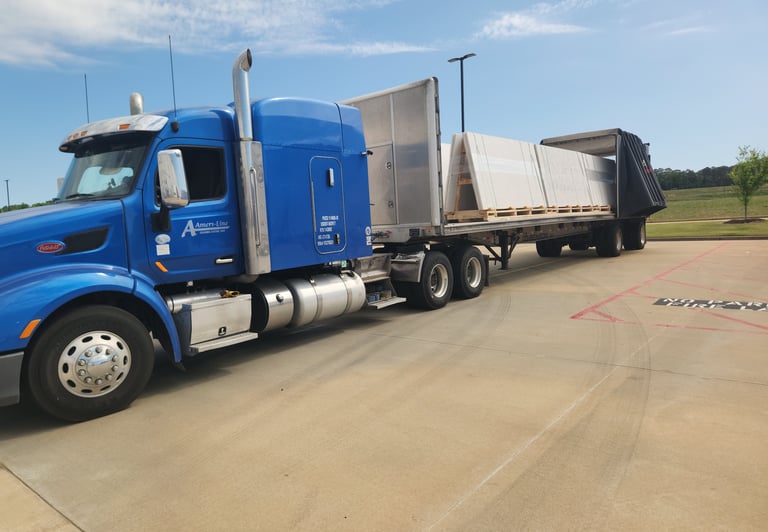

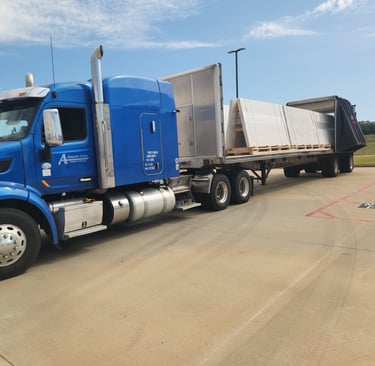

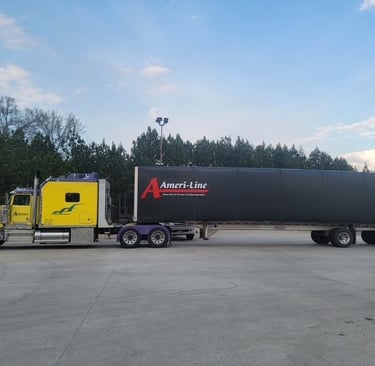

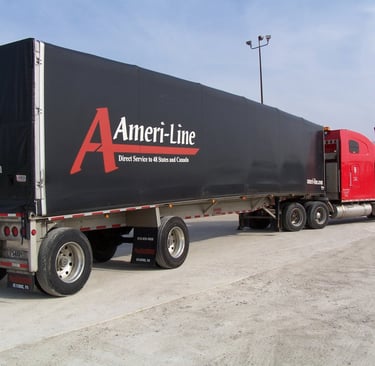

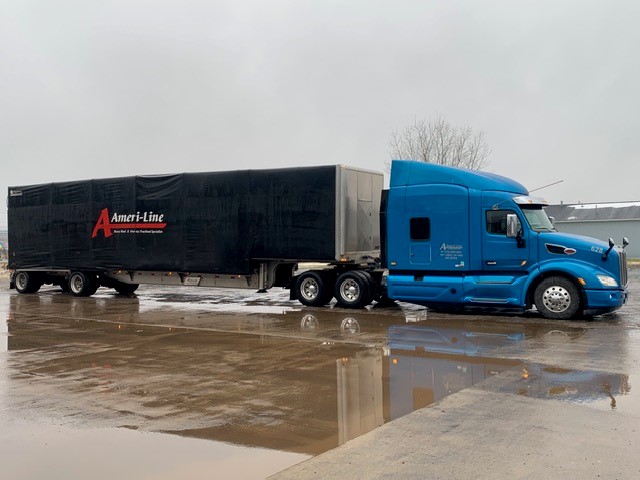

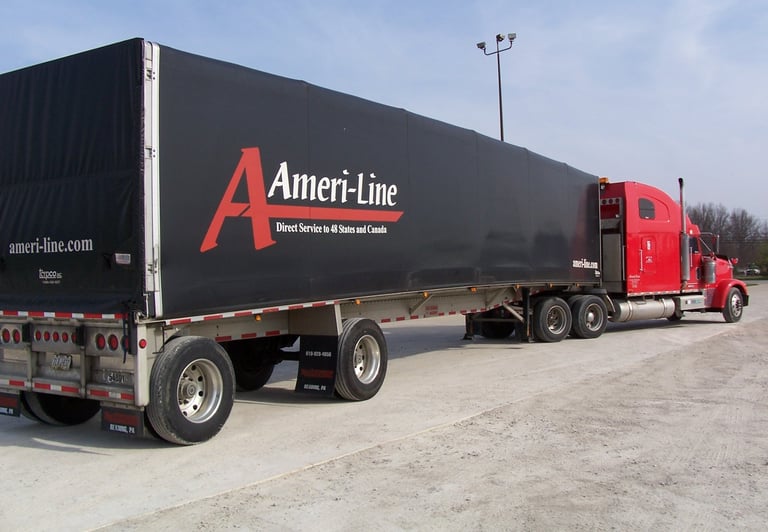

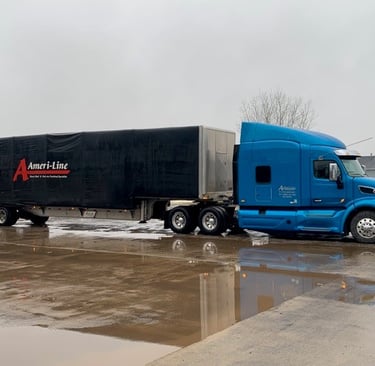

Conestoga Flatbed
Versatile Flatbed or Step-deck that has a retractable tarping system which rolls forward or back and allows Loading or Unloading from a dock, with an overhead crane, or from the side.
Maximum Freight Dimensions
| Inside loadable Dims | Max. Dims. |
|---|---|
| Length | 47’-6” feet |
| Width | 8.5 feet (102″) |
| Height | 7.75 feet (93″) |

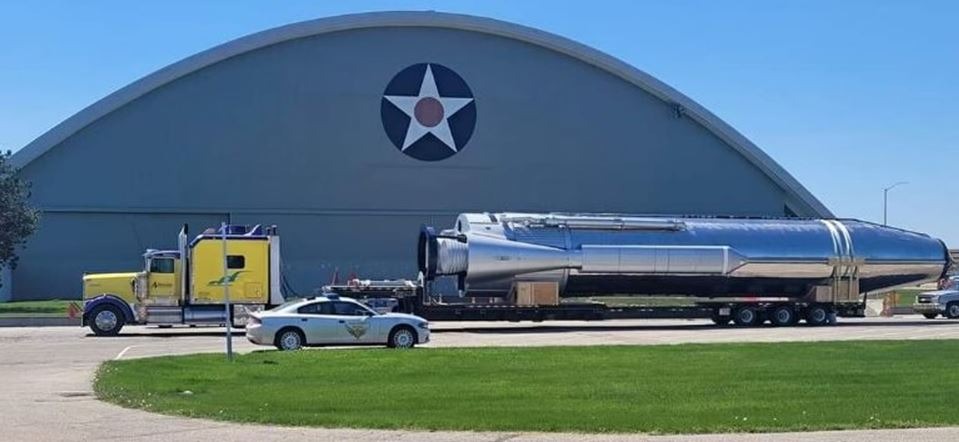

Additional Multi Axle Equipment is available to accommodate almost every size and weight. Let our experts help to determine the best equipment to transport your next shipment. Call us at 440-316-4500 or email us at sales@ameri-line.com
